Chemiacl FormulaNa2O·Al2O3·2SiO2·9/2H2O
-
SiO2 Al2O3≈2
-
StandardHG/T2524-2010
-
ColorBeige
-
Place of OriginChina
-
Brand NameHENAN FULONG
-
Model NumberMolecular Sieve 4A
-
Minimum Order Quantity1 MT
-
Packaging Details15KG sealed steel drum;25KG paper drum;135KG sealed steel drum
-
Delivery Time14 days
-
Payment TermsT/T, L/C, D/A, D/P
-
Supply Ability1000 MT per month

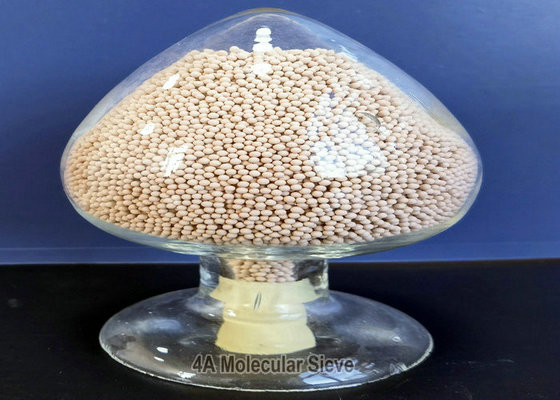

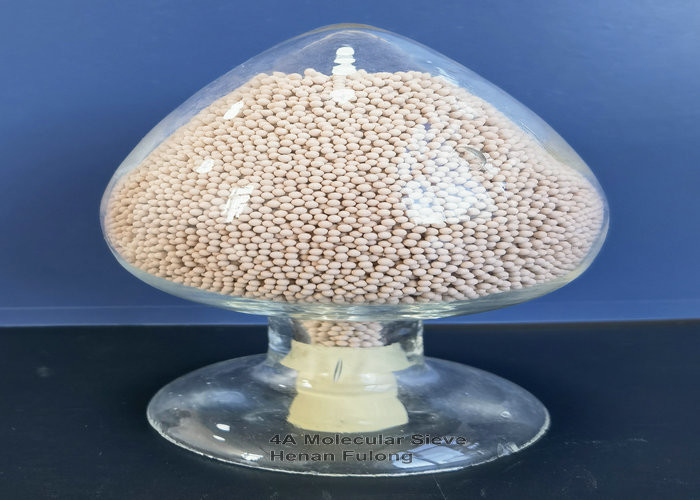

4A Molecular Sieve
Introduction:
4A molecular sieve is a kind of potassium-sodium aluminosilicate with LTA-type skeleton structure which is composed of silicon-oxygen and aluminum-oxygen tetrahedrons.The main crystal hole of the 4A molecular sieve is an eight-membered ring structure, and the crystal pore size is 4Å (0.4nm).It can adsorb water, methanol, ethanol, hydrogen sulfide, sulfur dioxide, carbon dioxide, ethylene and propylene, but does not adsorb any molecule with diameter greater than 4A (including propane). Its selective adsorption performance for water is higher than that of any other molecule.It is one of the largest molecular sieves varieties in industry.It is widely used in the drying of gases and liquids, and also in the refining and purification of some gases or liquids, such as the preparation of argon.
Specifications:
| Items | Spherical | Pellets | |||
| Grade | 4A-B1 | 4A-B2 | 4A-P1 | 4A-P2 | |
| Diameter (mm) | 1.6-2.5mm | 2.5-5.0mm | 1.6mm(1/16”) | 3.2mm(1/8”) | |
| Bulk density (g/ml) | 0.65 min | 0.60 min | |||
| Crushing strength (N) | 30 min | 60 min | 30 min | 50 max | |
| Wear ratio (%Wt) | 0.20 max | 0.30 max | |||
| Static Water Adsorption (%) | 21.0 min | 21.0 min | |||
| Static Methanol Adsorption (% ) | 14.0 min | ||||
| Water content (%) | 1.5 max | ||||
| Size ratio up to grade (%) | 98.0 min | ||||
Regeneration:
Moisture removal: The Products can be reactivated by thermal sewing. The temperature of the inlet gas through the molecular sieve bed should be 200-350℃ and the pressure 0.3-0.5kg/cm2 while The temperature of the outlet gas from the bed should be kept at 150-180℃
Organic gas removal: First the vapour is used to remove the organic substance, then the moisture is displaced.
Recommended Application:
1) Drying and removing of CO2 from natural gas, LPG, air, inert and atmospheric gases, etc.
2) Removal of hydrocarbons, ammonia and methanol from gas streams (ammonia syn gas treating)
3) Special types are used in the air break units of buses, trucks and locomotives.
4) Packed in small bags, it may be used simply as a packaging desiccant.
Package:
Net 25KG carton box lined with aluminum foilg bag.
