Zeolite Molecular Sieve 5A Molecular Sieve with good High adsorption

Zeolite Molecular Sieve 5A Molecular Sieve with good High adsorption

Products - Molecular Sieves
  • Color
    Beige
  • Appearance
    Sphere And Pellets
  • Other Name
    Calcium Molecular Sieve
  • Chemical Formula
    3/4CaO·1/4Na2O·Al2O3·2SiO2·9/2H2O
  • SiO2/AI2O3
    2
  • Place of Origin
    China
  • Brand Name
    HENAN FULONG
  • Model Number
    Molecular Sieve 5A
  • Minimum Order Quantity
    1 MT
  • Packaging Details
    Steel Drum or Carbon Barrel
  • Delivery Time
    14 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000 MT per month

Zeolite Molecular Sieve 5A Molecular Sieve with good High adsorption

  • Zeolite Molecular Sieve 5A Molecular Sieve with good High adsorption
  • Zeolite Molecular Sieve 5A Molecular Sieve with good High adsorption
  • Zeolite Molecular Sieve 5A Molecular Sieve with good High adsorption
  • Zeolite Molecular Sieve 5A Molecular Sieve with good High adsorption
Get Price Contact Now

Product introduction:



5A molecular sieve, generally also known as calcium molecular sieve with an effective pore opening of 5 angstroms, can absorb any molecule smaller than this pore size. In addition to the functions of 3A and 4A molecular sieves, it can also adsorb C3-C4 normal alkanes, chloroethane, bromoethane, butanol, etc., and can also be used for the separation of normal isomers, pressure swing adsorption separation and the co-adsorption of water and carbon dioxide.



Zeolite Molecular Sieve 5A Molecular Sieve with good High adsorption 0Zeolite Molecular Sieve 5A Molecular Sieve with good High adsorption 1





Technical Specifications of 5A molecular Sieve:



Shape Sphere Pellets
Grade 5A-B1 5A-B2 5A-P1 5A-P2
Diameter (mm)　 1.6-2.8mm 2.8-5.0mm 1.6(1/16') 3.2(1/8')
Bulk density (g/ml) 0.62 min 0.62 min 0.60 min 0.60 min
Crushing strength (N) 30 min 70 min 25 min 40 min
Abrasion rate ( %) 0.20 max 0.20 max 0.20 max 0.40 max
Carbon dioxide adsorption capacity (%) 15 min
static water adsorption (% ) 21.0 min 20.5 min
Static n-hexane adsorption (%) 12.0 min
Water content (%) 1.5 max
Size ratio up to grade (%) 98.0 min

Regeneration:

5A Molecular Sieve can be reactivated by thermal sewing, vacuum desorption or gas displacement, the regeneration mode is based on the
feed composition.


Recommended applications:

1. Removal of impurities such as H2O, CO2, and acetylene in the raw gas of the air purification system.
2. Drying and purification of air, nitrogen and inert gases in industry, drying and purification of hydrogen.
3. Separation of normal and isoparaffins in the paraffin industry (C4~C6 fraction).
4. Purification and drying of petroleum and natural gas, ammonia decomposition gas and other industrial gases and liquids.

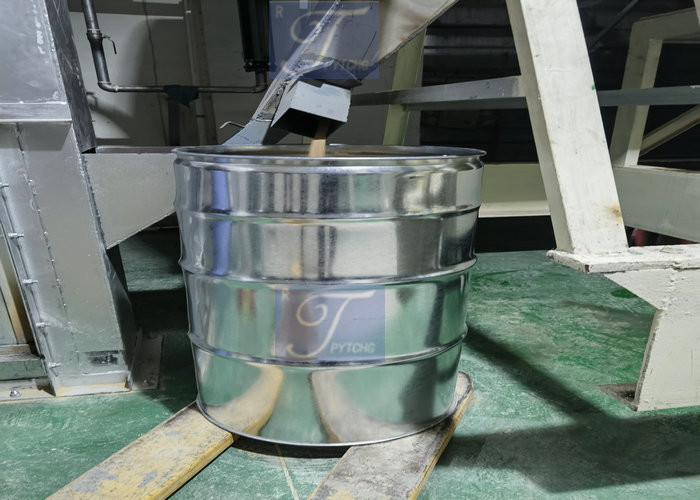

Package:

Net 150KG/160KG galvanized metal drum.
Net 25KG carton box lined with aluminum foilg bag.
Net 140KG/160KG fiber drum.
Net 1000KG container bag or other packings.

Attention:

To avoid damp and pre-adsorption of organic before running, or must to be reactivated.

Zeolite Molecular Sieve 5A Molecular Sieve with good High adsorption 2Zeolite Molecular Sieve 5A Molecular Sieve with good High adsorption 3
